Features:

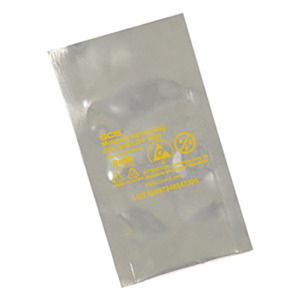

- 0.006" (6 mil) Thick Bag constructed from layers of nylon, foil, and polyethylene - Designed for moisture and electrostatic discharge (ESD) sensitive items (such as SMT). Meets ANSI/ESD S20.20, ANSI/ESD S541, ANSI/ESD S11.4 Level 1, and IPC/JEDEC J-STD-033.
- Nylon Reinforcement Layer - Ideal choice for packaging products with sharp corners. Strengthens bag structure to maintain performance per ASTM F392 flex testing and meets the ANSI/ESD S541 requirement as a barrier to current flow.
- <10 nJ Energy Penetration Tested per ANSI/ESD STM11.31 - Protects contents from ESD charges and discharges. Meets the requirement for discharge shielding per Static Control Bag ANSI/ESD S11.4 Level 1.
- >16lb Puncture Strength Average - Provides physical protection for contents.
- Dissipative Inner and Outer Surfaces Rs 1 x 104 to < 1 x 1011 ohms per ANSI/ESD STM11.11 - Allows bag to be grounded when placed on a grounded surface or handled by a grounded operator.
- Printed with ESD Protective Symbol, Moisture Sensitive Warning Symbols and Lot Code Information - Meets the requirements of ANSI/ESD S541 for quality control purposes.
- Lead-free RoHS 2, REACH and Conflict Minerals Compliant
Brand:Â SCS
ESD Safe:Â Yes
Puncture Strength:Â 16 lbs
Series:Â 3000 Series
Size:Â 14 x 18"
Temperature Range: 400°F
Tensile Strength:Â 3800 psi
Thickness:Â 6 mil
