Kurtz Ersa

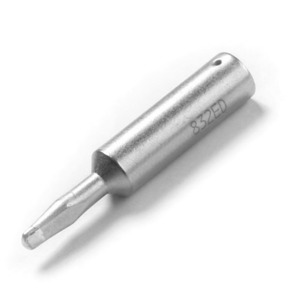

Kurtz Ersa 0832ED/SB Soldering Tip, Chisel, Straight, 3.2mm, 832 Series
Our Part #10141112
Condition:New
Mfr Part #0832ED/SB
Kurtz Ersa
Kurtz Ersa 0832ED/SB Soldering Tip, Chisel, Straight, 3.2mm, 832 Series
Our Part #10141112
Condition:New
Mfr Part #0832ED/SB
RoHS
$14.27EACH
RoHS
- Description
- Specifications
- Documents
- Coating - long-life tip
- Shape of soldering tip - chisel-shaped
- Diameter/width mm - 3.20
- Inner diameter piston in mm - 6.60
- External diameter piston in mm - 8.50
- Total length in mm - 46.00
- Weight in kg - 0.085
- ERSADUR long-life tip for continuous operation
ERSADUR soldering tip,for following soldering irons: ERSA 15+ (1E015CDA068, 0E015CD), ERSA 25+ (1E025CDA068, 0E025CD) MULTI-PRO (0930CD), PTC 70 (1710CDA068, 0710CD), MULTI-TC (0760ED), MULTI-SPRINT (1960ED0A068, 0960ED), RT 80 (0890CD), BASIC TOOL 60 (0670CDJ), ERGO TOOL (0680CDJ) and POWER TOOL (0840CDJ). chisel shaped, 3.2mm/0.126", Packing Unit = 1 pc. All dimensions without pre-tinning.
Brand: Kurtz Ersa
Series: 832 Series
Tip Type: Chisel
Tip Style: Straight
Tip Width: 3.2 mm
Tip Length: 46 mm
Lead Free Solder Compatible: No
Fits: ERSA 15+, ERSA 25+, MULTI-PRO, PTC 70, MULTI-TC, MULTI-SPRINT, RT 80, BASIC TOOL 60, ERGO TOOL and POWER TOOL Soldering Irons
Package Quantity: 1 Per Pkg.
Product Type: Soldering Tips
Tip Thickness: 1 mm
$14.27EACH
