Kurtz Ersa

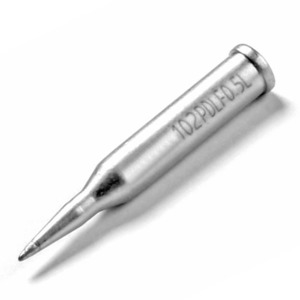

Kurtz Ersa 0102PDLF05L/SB Soldering Tip, Pencil Point, Straight, Extended, 0.5mm, Series 102
Our Part #10140983
Condition:New
Mfr Part #0102PDLF05L/SB
Kurtz Ersa
Kurtz Ersa 0102PDLF05L/SB Soldering Tip, Pencil Point, Straight, Extended, 0.5mm, Series 102
Our Part #10140983
Condition:New
Mfr Part #0102PDLF05L/SB
RoHS
$20.39EACH
RoHS
- Description
- Specifications
- Documents
- Coating: long-life tip
- Shape of soldering tip: pencil point
- Diameter/width mm: 0.50
- Inner diameter piston in mm: 3.50
- External diameter piston in mm: 5.20
- External diameter piston in mm: 5.20 Total length in mm - 34.50
- Weight in kg: 0.025
- ERSADUR long-life tip for continuous operation
ERSADUR soldering tip, lead free, for i-TOOL soldering iron (0100CDJ) pencil point,extended 0.5mm/0.020", Packing Unit = 1 pc. All dimensions without pre-tinning.
Brand: Kurtz Ersa
Series: 102 Series
Tip Type: Conical
Tip Style: Straight
Tip Diameter: 0.5 mm
Tip Length: 34.5 mm
Lead Free Solder Compatible: Yes
Package Quantity: 1 Per Pkg.
Product Type: Soldering Tips
$20.39EACH
