PH Series (Horizontal Projector with Longer Stage Travel and Surface Illuminator Option)

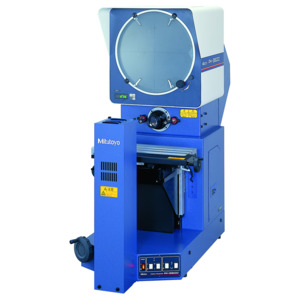

The PH-3515F profile projector provides upright images suitable for thread pitch measurements and will not produce blurred or distorted images with the workpiece is angled. The Mitutoyo PH-3515F profile projector produces bright crisp images on its 14-inch digital protractor screen for easier, more accurate inspections. Linear glass scales and a vertical beam, telecentric optical system on the PH-3515F makes for fast, accurate measurements.

■ Floating work stage provides moves with precision for better accuracy and can handle workloads up to 100 lbs.
■ Fiber optic cables provide surface illumination for better, more natural workpiece visibility
■ Generous 10” x 6” x- and y-axis work stage travel delivers generous range to cover many application needs
■ Digital protractor displays in absolute or incremental units for angle measurements
■ Image displays erect on the high brightness screen
■ Screen rotates 360° for infinite viewing options
■ 2D measurement processing is available through the use of the QM data or M2 software
■ Variety of workpiece fixtures available to accommodate different parts

*Counter and Stand Not Included
