Altech

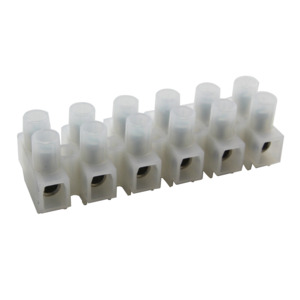

Altech 40.503 Terminal Strip, Panel Mount, ATSF6/2, 3 Pole, 12mm Space, 600V, 40A, M3.5, ATS Series
Our Part #10123019
Condition:New
Mfr Part #40.503
Altech
Altech 40.503 Terminal Strip, Panel Mount, ATSF6/2, 3 Pole, 12mm Space, 600V, 40A, M3.5, ATS Series
Our Part #10123019
Condition:New
Mfr Part #40.503
$1.69EACH
Multiples of: 100
- Description
- Specifications
- Documents
- Quick and Efficient Wire-to-Wire connection solution
- Modern Replacement for traditional Double-Row Barrier Style Terminal Blocks
- Touch-proof design to eliminate shorts
- Easy to cut to length by using hacksaw or utility knife
- Safe, Gas-tight connection
- Reliable connection utilizing a precision machined tubular screw clamp insert
- Accessories for convenient wire installation and usage
Brand: Altech
Wire Size: 20 AWG
Number of Poles: 3
Series: ATS Series
Certifications: CE, UL, IEC
Color: White
Current Rating: VDE: 44A, UL: 40A
Length: 32 mm
Material: Zinc Yellow Chromated Steel
Maximum Torque: 7 lb./in.
Maximum Wire Size: 8<choice id="794"> AWG
Package Quantity: 100/Pk
Pin Spacing: 12mm
Screw Size: M3.5
Strip Length: 7.0 mm
Terminal Diameter: 4.4 mm
Torque: 0.8 Nm
Voltage Rating: 600 V
$1.69EACH
Multiples of: 100
