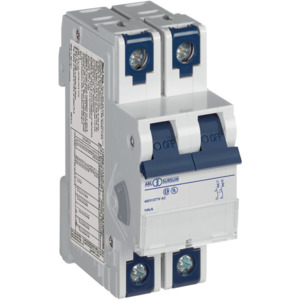

Altech 2D63UM UL 508 Mini-Molded Case Circuit Breaker, D-Trip, 2 Pole, 63A Current Rating
Our Part #10108865
Condition:New
Mfr Part #2D63UM
Altech
Altech 2D63UM UL 508 Mini-Molded Case Circuit Breaker, D-Trip, 2 Pole, 63A Current Rating
Our Part #10108865
Condition:New
Mfr Part #2D63UM
$EACH
- Description
- Specifications
- Documents
- Short Circuit Withstand Rating (UL/CSA - Ratings): 0.3-60A (RC): 10kA with UL-listed; RK5 back-up fuse or MCCB
- Group Short Circuit Withstand Rating (UL/CSA - Ratings): 0.3-10A (RC): 10kA; 12-60A (RC): 5kA; no branch circuit protection required
- Interrupting Capacity (VDE - Ratings): 0.3-63A (RC): 10kA
- Calibration Temperature: 40°C (104°F)
Brand:Â Altech
Number of Poles:Â 2
Series:Â V-EA Series
Current Rating:Â 63 A
DC Voltage:Â 60 V
IP Rating:Â IP20
Mounting Type:Â DIN Rail
Operating Temperature: -13 to 131°F
RoHS Compliance:Â Yes
Storage Temperature: -40 to 158°F
Style:Â D-Trip
Terminal Size: Top: 18-3 AWG; Bottom: 18-2 AWG (Line/Load reversible)
Torque:Â 2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)
Voltage Rating: 0.3-60A/480Y/277V AC; 0.3-25A: 1 pole - 42V DC; 2 Pole - 80V DC; 30-60A: 1 pole - 24V DC; 2 Pole - 60V DC
