Techni-Pro

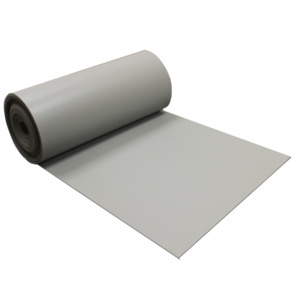

Techni-Pro 10069956 ESD Table Mat Roll, 3-Layer, Vinyl, 2 x 32', 0.125" Thick, Light Gray
Our Part #10069956
Mfr Part #10069956
Techni-Pro
Techni-Pro 10069956 ESD Table Mat Roll, 3-Layer, Vinyl, 2 x 32', 0.125" Thick, Light Gray
Our Part #10069956
Mfr Part #10069956
$Roll
- Description
- Specifications
- Documents
- RTT: 10^6 – 10^8 ohms (Test Method: ESD S4.1)
- RTG: 10^6 – 10^8 ohms (Test Method: ESD S4.1)
Durable Three-Layer ESD Mat Design
The Techni-Pro Mat Roll features a three-layer design, 0.125” thickness, providing excellent electrical and ergonomic comfort that only a foam-backed material can offer. It is compatible for use with continuous monitors. The top layer is made of conductive carbon, the middle layer provides a quick discharge path to ground, and the cushioned dissipative bottom layer is made of durable vinyl. It is suited for use as an ESD protective bench mat or tray mat. Its highly custom layer provides excellent protection against physical damage.
Brand: Techni-Pro
Color: Light Gray
Thickness: 0.125"
Width: 2 ft.
Material: Heat fused vinyl composite
Length: 32 ft.
Common Point Grounding: No
Cord and Snap Included: No
Number of Layers: 3
Compliant Specifications: 4.1 ESD Standard 20.20, EIA 625, 20.20, EIA 625, MILI-HDBK-263, and MIL-STD-1686
ESD Safe: Yes
Product Type: Table Mat Roll
Roll: Yes
Surface Style: Light Embossing
