• Max VSWR of 1.25:1 up to 18 GHz
• Contact plating according to MIL-STD-348
• Gold over Nickel Plated Beryllium Copper Contact

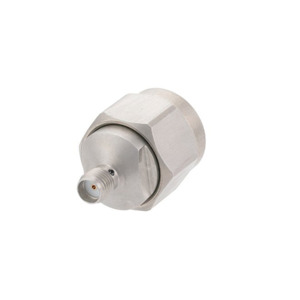

Pasternack’s PE91339 type N male to SMA female adapter features a male-to-female configuration and is built from durable stainless steel with a precision design. The PE91339 adapter operates up to 18 GHz and provides an excellent maximum VSWR of 1.25:1.

RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment, especially where the number of connect/disconnect cycles is high. An RF, microwave, or millimeter-wave adapter is connected to the equipment, while the commonly changed connection is made with the adapter, which can be easily replaced when it wears out after extensive use; such adapters are referred to as connector savers.
