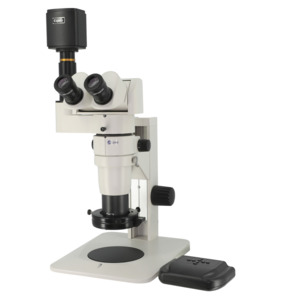

LX Microscopes by UNITRON 24825-HDTRT Microscope S-Z 24mm Ergo Trinocular PFSTRT-DMLED-HOHD 1.0X Lens 374 Series

10000866 MFG #: 24825-HDTRT
$5,415.00 / EA
0
  • Working Distance: 78mm
  • Brand Name: LX Microscopes by UNITRON
  • Drill Down Description: Microscope, S-Z 24mm Ergo Trinocular, PFSTRT-DMLED-HOHD, 1.0X Lens, 374 Series
  • Magnification: 1.0X = 8X - 50X; 0.5X =- 4X - 25X
  • Model: 24825-HDTRT
  • Series: 374 Series
  • UNSPSC: 41111700

  • Description
  • •Ergonomic trinocular viewing body with 0° to 30° adjustable inclination eyetubes
    •Eyetubes rotate 18° increasing height by up to 3 inches
    •WF10X/24mm field of view focusing eyepieces with roll down eyeguards
    •Magnification range 8X to 50X (with 10X eyepieces)
    •78mm working distance
    •1.0X Objective lens included
    •Plain Focusing Stand with 125mm of focusing travel, 175mm (L) x 225mm (D) x 219mm (H)Dimmable LED High Output Ring Light (part number 18743), 5600K color temperature, 50,000 hour rated lamp life and produces 5800 foot-candles at 4.5" working distance
    Excelis™ HD 6MP Camera, view and capture images with or without a PC. Perform measurements on live HD images. Simultaneously view live image through the eyepieces and output to an HD monitor directly or to a PC via USB2.0 using CaptaVision software (monitor and PC not included.)
    Video adapter, HDMI and USB 2.0 cables, 12V Power adapter, 8GB SD Card, USB Mouse and CaptaVision PC Imaging Software included
    Simultaneously view images on screen and through the eyepieces
    Shipping weight 21 lbs.

LX Microscopes by UNITRON’s System 374 is the newest addition to our industry renowned, ergonomic microscope family. The ergonomic features of the System 374 are ideal for prolonged use and offer added flexibility for multiple operator usage. Distortion free viewing through a high quality, 24mm optics system provides a 4X-25X magnifica-tion range when used with a 0.5X Reducing lens or an 8X-50X magnification range when used with a 1.0X Objective lens. Easy to adjust, tilting binocular eyetubes can be inclined from 0 to 30°
and the eyetubes can be rotated 180° to increase the height by an additional 3 inches. System 374 models allow operators to simultaneously view images on screen and through the eyepieces improving productivity. Select models include our full featured, Excelis™ HD 6MP Camera.


A Solution for Every Application
LX Microscopes by UNITRON feature high-quality achromatic lenses with anti-reflective coatings for superior visual clarity. A choice of light sources and mounting options enable the product set-up best suited for each individual ap-plication. Digital imaging systems are configurable to allow capturing of images to catalog or share inspection re-sults and observations, for archiving or communicating electronically. The end result is increased productivity with an easy-to-use product line.Unitron LX Microscopes System 374 Catalog Sheet
