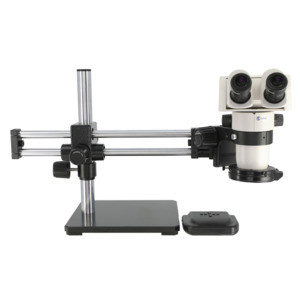

LX Microscopes by UNITRON 24828BB Microscope S-Z 24mm Ergo Binocular BB Stand .5X Lens Dimmable LED-HO Ring 274 Series

10000859 MFG #: 24828BB
$4,190.00 / EA
0
  • Working Distance: 186mm
  • Brand Name: LX Microscopes by UNITRON
  • Drill Down Description: Microscope, S-Z 24mm Ergo Binocular, BB Stand, .5X Lens, Dimmable LED-HO Ring, 274 Series
  • Magnification: 4X - 25X
  • Model: 24828BB
  • Series: 274 Series

  • Description
  • •Ergonomic binocular viewing body with 0° to 30° adjustable inclination eyetubes •Eyetubes rotate 180° increasing height by up to 3 inches •WF10X/24mm field of view focusing eyepieces with roll down eyeguards •Magnification range 4X to 25X (with 10x eyepieces) •186mm working distance •Ball bearing boom stand with base, 22.5" length of horizontal boom, solid aluminum vertical post with overall vertical height of 16", 11 1/8" x 10 1/4" x 7/8" base Dimmable LED High Output Ring Light (part number 18743), 5600K color temperature, 50,000 hour rated lamp life and produces 5800 foot-candles at 4.5" working distance •Shipping weight 53 lbs.

LX Microscopes by UNITRON’s System 274 is the newest addition to our industry renowned, ergonomic microscope product family. The ergonomic features of the System 274 are ideal for prolonged use and offer added flexibility for multiple operator usage. Distortion free viewing through a high quality, 24mm optics system provides a 4X-25X magnification range. Easy to adjust, tilting binocular eyetubes can be inclined from 0 to 30° and the eyetubes canbe rotated 180° to increase the height by an additional 3 inches.

A Solution for Every Application
LX Microscopes by UNITRON feature high-quality achromatic lenses with anti-reflective coatings for superior visual clarity. A choice of light sources and mounting options enable the product set-up best suited for each individual application. The end result is increased productivity with an easy-to-use product line.Unitron LX Microscopes System 274 Catalog Sheet
