Cable Verification and Tracing Analyzer, Transmitter (6683E) and Receiver (6683R)

Key Highlights:

• Detects open circuits and interruptions

• Locate, trace and verify cables, conductors, and metal pipes, in walls, ceilings, or underground

• Non-contact voltage detection (NCV) up to1000 VAC

• Dual operation modes - works in energized or de-energized systems

• Provides clear digital visual real-time feedback via LCD and audible tone

Features:

• Quickly locates and traces electrical or metallic conductors, and identifies cable fault locations such as shorts and open circuits

• Adjustable sensitivity — automatic for quick scans or manual for fine detection

• Multiple transmitter ID codes (up to 7) for identifying several lines simultaneously

• Digital filtering technology ensures reliable detection and strong immunity to interference

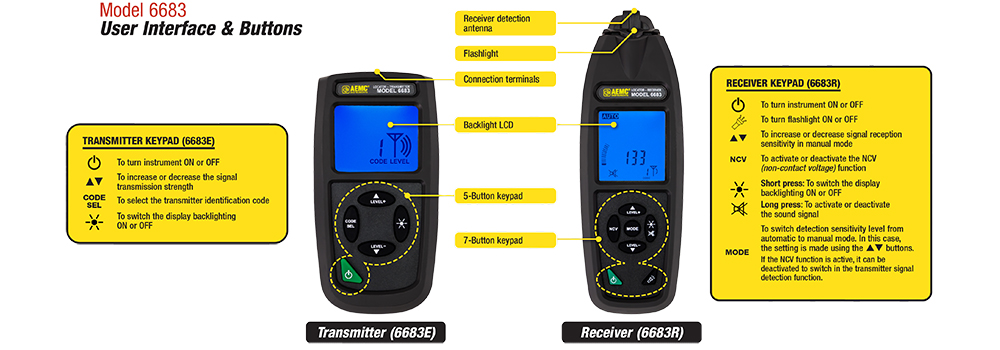

• Large backlit LCDs on both transmitter and receiver show transmission power, digital ID, voltage presence indicator, and battery status

• Built-in LED flashlight for low-light spaces

• Auto power-off on receiver to extend battery life

Whether identifying a live line, tracing a circuit breaker, or finding a break in a buried conductor, the Model 6683 simplifies complex diagnostics into a few intuitive steps.

• Transmitter - Safety - IEC/EN 61010-2-030 300 V CAT III

• Transmitter - Information Displayed: Measured voltage level, type (AC or DC), transmitted signal power, battery status, identification code, voltage presence

• Receiver - Information Displayed: Signal amplitude, detection sensitivity, transmitter identification code and transmitted signal strength, battery status, voltage presence

• Receiver - Non-Contact Voltage (NCV) Function: (12 to 1000) Vac

See What's Hidden. Trace it. Verify it. Fix it.

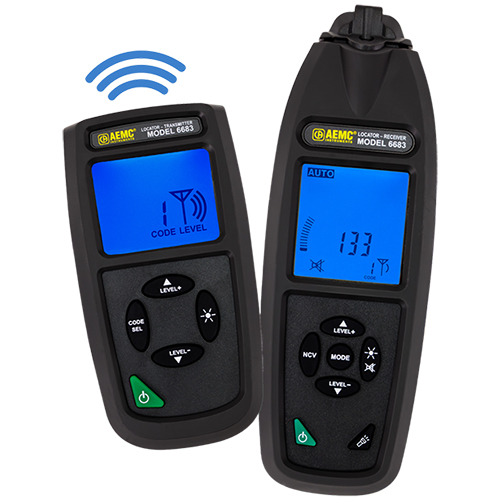

The AEMC® Model 6683 Cable Verification & Tracing Analyzer is easy to use and quickly locates, traces, and verifies electrical cables, conductors, and metal water or heating pipes — even when they're buried or hidden behind walls, floors, and ceilings. With a dedicated transmitter/receiver pair, large backlit LCDs, NCV (non-contact voltage) detection and flexible connection modes, you get precision detection, clear feedback, and built-in safety so electricians, facility teams, and service technicians can safely pinpoint faults fast and keep systems running.

If voltage is present, the transmitter warns of the danger and indicates its value. The transmitted signal is digitally coded to avoid interference, and its power can be adjusted manually to fine-tune detection.

In complex cases, the identification code configuration allows up to 7 transmitters to be used simultaneously.

If voltage is present, the TRANSMITTER signals its presence and indicates its value. The signal emitted is digitally coded to prevent interference, and its power can be adjusted manually to refine detection. In more complex cases, the identification code can be configured to allow up to 7 transmitters to be used simultaneously.

The RECEIVER is equipped with a built-in flashlight, a silent mode and automatic or manually adjustable sensitivity for better selectivity to adapt to all situations on the construction site. Because of its NCV function, the receiver can be used alone to locate a hot conductor connected to an energized system.

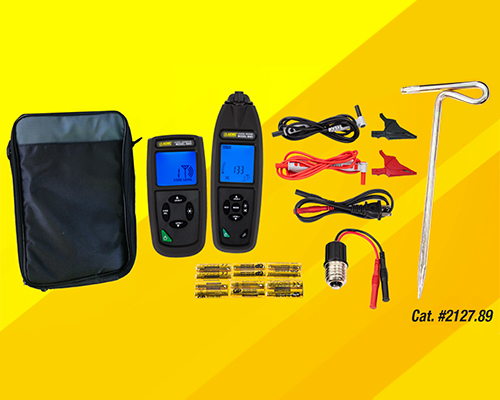

In the Box

• Transmitter (6683E) and receiver (6683R)

• Soft carrying case

• 5 ft silicone color-coded (red/black) safety leads with 4 mm straight/right-angle banana plugs x2

• Alligator clips (red/black) x2

• 110 V outlet adapter with banana plugs

• Mini ground rod

• E14 bulb adapter

• 1.5 V AAA (LR03) batteries x6

• Multilingual user manual
