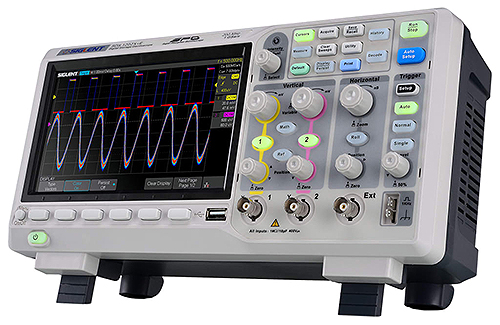

SDS1202X-E Super Phosphor Oscilloscope

The SDS1000X-E Series employs a new generation of SPO (Super-Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. It comes with a minimum vertical input range of 500 uV/div, an digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The series also employs a 256-level intensity grading display function, color temperature display mode and supports multiple powerful triggering modes including serial bus triggering.

The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new 1 million points FFT math function that gives very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co-processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response.

Features and Specifications (SDS1202X-E)

• 200 MHz Bandwidth

• 2 Channels

• 1 GSa/s Sampling Rate: Two 1 GSa/s ADC chips (channel 1 and 2 share, channel 3 and 4 share), each channel can achieve sample rates up to 500 MSa/s and work on bandwidths of 200 MHz when all channels are enabled

• Capture rate: 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)

• Memory depth: 14 Mpts (single-channel); 7 Mpts/CH (dual-channel)

• Serial trigger and decoder: I2C, SPI, UART, CAN, LIN (Free in SDS1000X-E Series)

• Intelligent trigger

• Serial trigger and decoder

• Hardware-based Pass/Fail mode

• Security Erase mode

• USB Host, USB Device, LAN, Pass/Fail, Trigger Out

• 7 inch TFT–LCD (800 x 480 pixels)

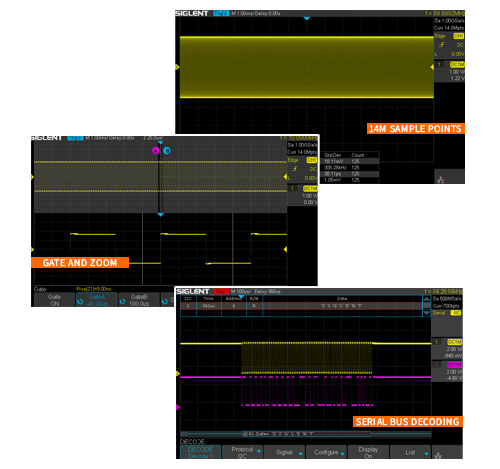

Revolution in Data Analysis Processing

True Measurement to 14 M Points

Measure all sampled data points up to 14 Mpts which ensures the accuracy of measurements while the math co-processor decreases measurement time.

1 M Point Used to Calculate the FFT

The math co-processor enables FFT analysis up to 1M samples per waveform giving a high-frequency resolution with a fast refresh rate. FFT also supports Peaks, Markers, and a variety of numbers and window functions.

Gate and Zoom Measurement

Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics.

Serial Bus Decoding Function (Standard)

Serial decoding is Free in the SDS1202X-E and includes IIC, SPI, UART, CAN, and LIN. The waveform and data can be displayed at the same time and the detailed decoding information is displayed in the form of a list, and the data can be stored and exported.

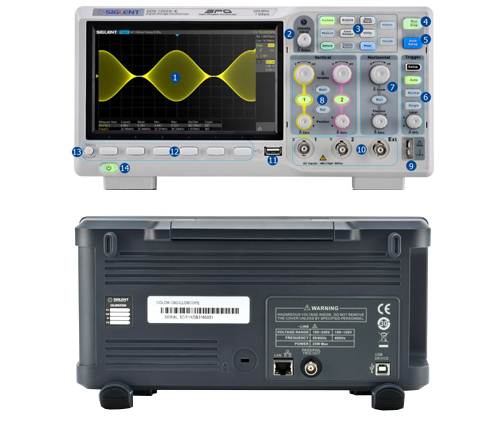

Panel Features Tour

Front

1. User Interface

2. Universal Knob

3. Function Menus

4. Run / Stop

5. Auto Setup

6. Trigger Control

7. Horizontal Control

8. Channel Vertical Control

9. Probe Compensation

10. Analog Channel Inputs

11. USB Host

12. Function Menu Softkeys

13. Menu On / Off

14. Power On / Off

Rear

1. Handle

2. Safety Lock Hole

3. LAN Interface

4. Pass/Fail or Trig Out Output

5. USB Device

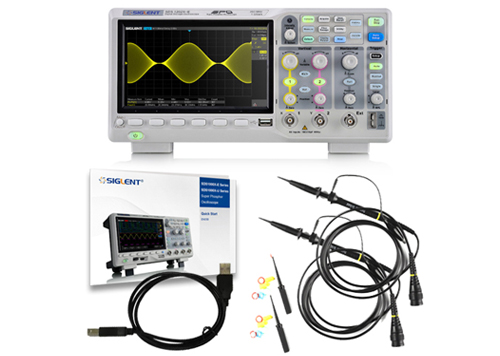

What's in the Box

• SDS1202X-E Oscilloscope

• 2 Passive Probes (PP215)

• USB Cable

• Quick Start Guide

• Certification (not shown)

• Power Cord (not shown)
