Siglent SDS2104X Plus Super Phosphor Oscilloscope

The Siglent SDS2104X Plus, a 4-channel, 100 MHz, 2 GSa/s oscilloscope, is the third generation of Siglent’s 2000 series. Building on the success of the SDS2000X introduced five years ago, Siglent has incorporated customer feedback to create the SDS2000X Plus series. Designed to impress, the X Plus offers a feature-rich standard configuration along with flexible options, making it a powerful tool for a wide range of general-purpose lab applications.

Features and Specifications

• 100 MHz Bandwidth

• 4 + EXT Channels; 16 digital (optional)

• 200 Mpts/ch Memory depth

• 8-bit Vertical Resolution; 10-bit mode (with typical 100 MHz bandwidth)

• 1 GSa/s (non-interleaving); 2 GSa/s (interleaving) Sampling rate

• 120,000 wfm/s (normal); 500,000 wfm/s (sequence) Capture rate

• Serial bus triggering and decoder, supports I2C, SPI, UART/RS232, CAN, LIN (standard)
  CAN FD, FlexRay, I2S, MIL-STD-1553B (optional)

• Low background noise, features 0.5 mV/div to 10 V/div voltage scales

• History waveform record function for up to 90,000 triggered waveforms (frames)

• Two Math traces, support 2 Mpts FFT, +, -, x, ÷, d/dt, ∫dt, √, average, ERES,
  and formula editor

• Search and Navigate functions allow for extended waveform records to be captured captured, stored, and analyzed

• USB Host, USB Device, LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL)

• Built-in web server supports remote control over the LAN

• 10.1 inch TFT-LCD with capacitive touch screen (1024x600)

• 256-level intensity grading display function and a color temperature display mode

• 50 MHz Built-in Waveform Generator (optional)

• External mouse and keyboard support

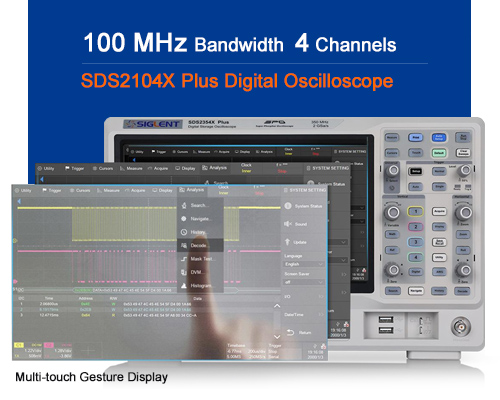

Provides Higher Resolution and Lower Noise

10-bit mode combined with Zoom shows you more details and less noise on the waveform. The vertical and horizontal zoom feature of the SDS2000X Plus enable the user to pick a region and magnify the captured signal in order to conduct a more detailed analysis.

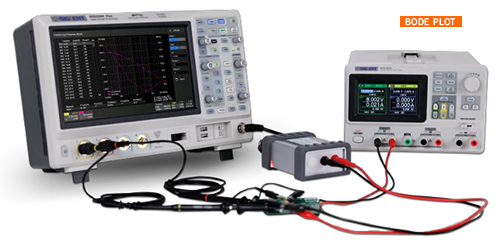

Power Loop Response Analysis (Bode Plot)

Siglent offers a solution for stability measurement - Signal source Power loop measurement with standard Free Bode Plot II software. Features higher measurement sensitivity and accuracy, variable excitation scan mode, user-friendly UI design, plus list and cursor measurements that are more intuitive.

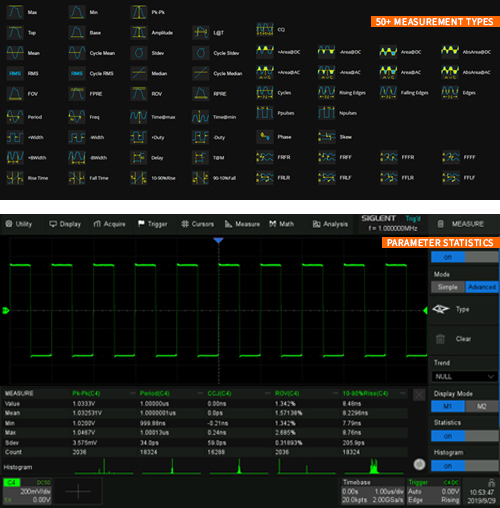

Measurements for Parameters and Parameter Statistics

Parameter measurements includes 4 categories - horizontal, vertical, miscellaneous and channel delay providing a total of 50+ different types of measurements. Measurements can be performed within a specified gate period. Measurements on Math, Reference and History frames are supported.

Statistics shows the current value, maximum value, minimum value, standard deviation and mean value of up to 12 parameters simultaneously. Histogram is available to show the probability distribution of a parameter. Trend is available to show the parameter value vs. time. In addition, horizontal measurements can process up to 1000 signal edges within one single frame, thus greatly improving the test efficiency.

Siglent's SDS2000X Plus Series

The SDS2000X Plus Series employs SPO (Super Phosphor Oscilloscope) technology, 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. History waveform recording, Sequence acquisition, Search and Navigate functions allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 50 MHz waveform generator, as well as serial decoding, mask test, bode plot, and power analysis are also features. A 10-bit acquisition mode helps to satisfy applications which require more than 8-bit resolution. *Note: SDS2102X Plus model is discontinued.

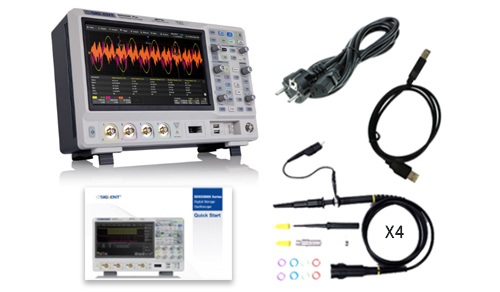

What's in the Box

• SDS2104X Plus Oscilloscope

• USB cable

• Passive probe x4

• Certificate of calibration

• Power cord

• Quick start

Frequently Asked Questions & Answers

• What advanced features does the Siglent SDS2000X Plus Series of oscilloscopes offer?
  The series offers an impressive array of measurement and math capabilities, options for a 50 MHz waveform generator, as well as serial decoding, mask test, bode plot, and power analysis are also features of the SDS2000X Plus.

• What type of trigger system does the SDS2000X Plus Series use, and what modes does it support?
  It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering.

• Is there a bandwidth upgrade available for the SDS2104X Plus?
  Yes, the SDS2000XP-4BW02 software option will provide a 100 MHz to 200 MHz bandwidth upgrade for 4 channel SDS2000X Plus oscilloscopes.

• What option provides 16 digital channels for MSO operation?
  The SDS2000XP-16LA software option enables 16 digital channels but requires the SPL2016 16-channel logic probe for full function capabilities.
