Siglent SHA861A Handheld Spectrum Analyzer

The Siglent SHA861A is an advanced handheld signal analyzer that combines spectrum analysis, vector network analysis, and cable/antenna testing in one compact device. Designed for efficient deployment and maintenance of 5G and LTE base stations, it supports a frequency range from 9 kHz to 3.6 GHz and offers 110 MHz of real-time bandwidth. Key capabilities are 5G NR/LTE over-the-air testing, real-time spectrum monitoring, pulse profiling, and GPS-enabled indoor/outdoor signal mapping.

Features and Specifications

• Frequency Range: 9 kHz-3.6 GHz, 5 kHz usable
• Displayed Average Noise Level (DANL): -165 dBm/Hz
• SSB Phase Noise: -104 dBc/Hz at 1 GHz, 10 kHz offset
• 8.4-inch multi-touch screen and supports various gesture operations
• USB and LAN connectivity

Options:

• SHA860-B1A: Analysis Bandwidth 40/110 MHz
• SHA860-B1A: Real-Time Spectrum Analysis in 110 MHz Band Width,
  100% POI time 3.51 µs
• SHA860-NR: 5G NR OTA Measurement, multi-PCI and multi-beam analysis
• SHA860-LTE: LTE FDD and TDD OTA Measurement, multi-PCI analysis
• SHA860-MAP: Indoor and outdoor map for Coverage Mapping
• SHA860-IQA: IQ Data Acquisition in 110 MHz Bandwidth
• SHA860-PU: Pulse Profile Measurements
• SHA860-EMI: EMI Measurement
• SHA860-VNA: Vector Network Analysis
• SHA860-GPS: GPS Receiver

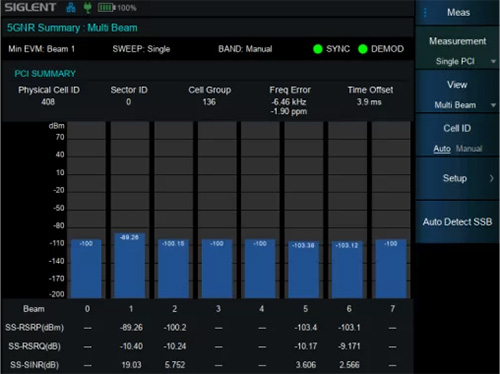

5G NR OTA Measurement (option SHA860-NR)

Accurate assessment of network quality and beam performance is essential during 5G base station deployment. The SHA860A’s 5G NR OTA mode demodulates signals to retrieve critical metrics such as frequency, physical cell ID (PCI), SSB index, frequency offset, and error vector magnitude (EVM) for the SSB segment, all displayed through constellation diagrams. This capability is crucial for fine-tuning 5G Non-Standalone (NSA) setups, ensuring smooth integration between LTE and 5G systems.

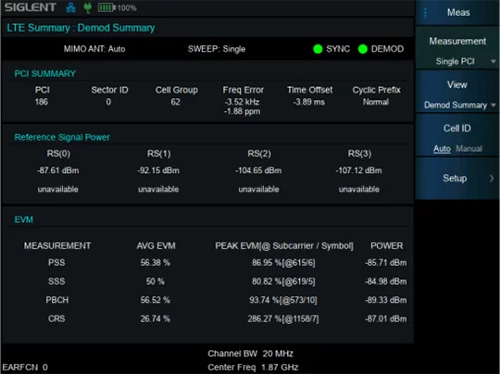

LTE TDD/FDD OTA Measurement (option SHA860-LTE)

The LTE OTA testing function delivers detailed demodulation data, including PCI, sector ID, cell group, frequency offset, time delay, sync status, and power levels for PSS, SSS, CRS, and PBCH, along with EVM values and constellation visuals. By evaluating signal integrity, channel behavior, and interference across multiple cells, technicians can apply focused improvements to boost network performance and user satisfaction.

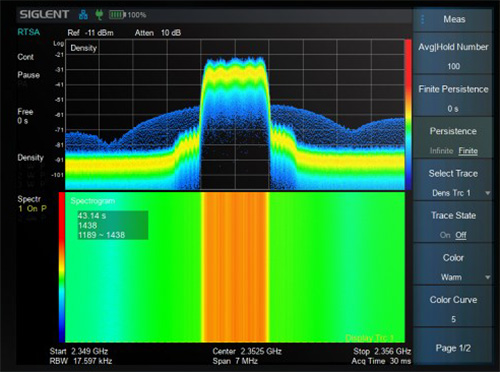

Real-Time Spectrum Analysis (option SHA860-B1A)

Equipped with 110 MHz real-time bandwidth and a processing speed of 300,000 FFTs per second, the SHA860A can detect transient signals as brief as 3.51 µs with 100% Probability of Intercept (POI). It includes advanced analysis tools such as frequency mask triggering (FMT), density plots, 3D views, spectrograms, and Power vs. Time (PvT) displays, enabling in-depth, multi-dimensional examination of complex signals—ideal for interference detection and spectrum analysis in fast-changing 5G environments.

Siglent SHA860A Series

The SHA860A series includes two models and is a next-generation handheld signal analyzer that combines spectrum analysis, vector network analysis, and cable/antenna testing in one portable device—providing a complete solution for deploying and maintaining 5G/LTE base stations.

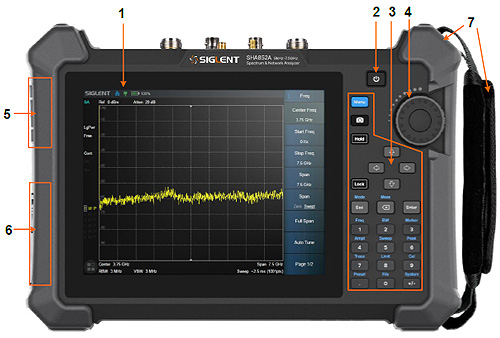

Front Panel Features

1. LCD Screen
2. Power Switch
3. Function Keys
4. Three-dimensional knob
5. Fan vent
6. Battery case cover
7. Detachable hand strap

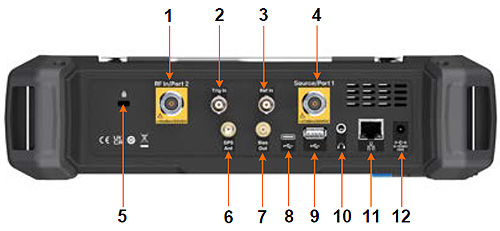

Rear Panel Features

1. RF In/ Port 2
2. Trig In
3. Ref In
4. Source/ Port 1
5. K-groove
6. GPS Ant
7. Bias Out
8. USB Device
9. USB Host
10. Audio output
11. LAN
12. External power supply

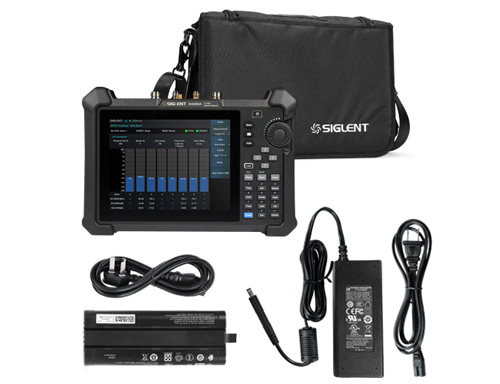

What's in the Box

• SHA861A Handheld Spectrum Analyzer
• Quick Start
• USB type-C cable
• Power cord
• AC-DC adapter
• Rechargeable lithium battery
• Portable bag
