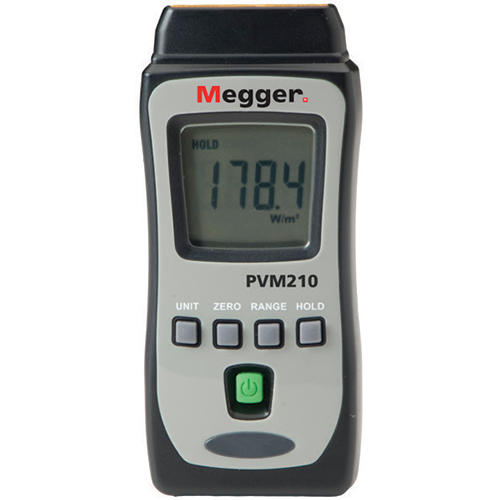

Megger PVM210 Irradiance Meter

The PVM210 irradiance meter offers solar and photovoltaic engineers a compact, pocket‑sized tool designed for effortless use. Because the sensor and display are integrated into a single unit, it can be operated with one hand which provides an advantage when working on pitched roofs or at the top of a ladder.

Its clear display and measurement‑hold function allow you to capture quick, accurate readings of solar power, helping you determine the best initial placement for a photovoltaic panel.

The meter also supports essential measurements for calculating short‑circuit currents. When paired with a suitable ammeter, it can help confirm the manufacturer’s stated short‑circuit current for a panel. In addition to readings in W/m², it includes a selectable BTU range. To extend battery life, the PVM210 features automatic power‑off, and a universal camera‑style mounting thread on the back enables stable positioning for precise measurements. Each unit comes with a protective carrying pouch.

Features and Specifications

• Optimal incident angle and positioning of solar panels

• Measurement of solar power for panel short circuit calculation

• Single-handed use

• Pocket sized for easy carrying

• Digits: 3 3/4

• Display: Backlit LCD screen

• Standard camera mount fixing for accurate placement

• Ranges:
  1999 W/m² (watts per square meter)
  634 BTU/(ft²*h) (British Thermal Units)

• Accuracy: typically within ± 10 W/m² / ±3 BTU/(ft²*h)

• Resolution: 0.1 W/m² / 0.1 BTU/(ft²*h)

• Dimensions 134 mm (H) x 48 mm (W) x 27 mm (D)

• Batteries: 2 x AAA, MN2400, LR03

• Battery Life: 50 hr approx.

• Auto Off: 15 min.

• EMC: EN61326

• 1 year warranty

Measuring the Sunlight

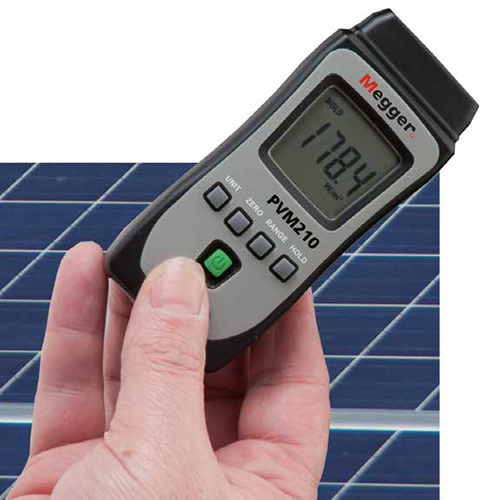

The solar detector is located at the top of the meter. To take a solar power measurement, hold the meter with the detector facing the sky, positioned at a 90‑degree angle relative to the solar panel.

For even greater accuracy when checking the optimum angle or position, you can use the universal camera mount on the back of the meter to secure it in place.

Please note that the PVM210 operates within a temperature range of 5 to 40°C at below 80% RH, and it can be stored between –10 and 60°C at below 70% RH.

PVM210 Compatible Kits

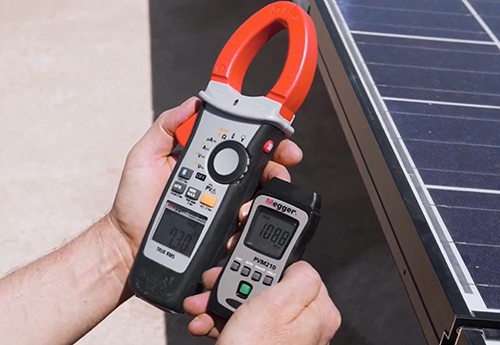

When you're in the field and need to take an irradiance measurement followed quickly by a current measurement, the compact design and ease of use of the PVM210 make the process convenient. Having a comprehensive kit that captures both measurements is ideal, and Megger offers a range of instruments to help you build the perfect setup for all your PV solar testing needs.

The PVK320 and PVK330 kits, sold separately, include the PVM210 irradiance meter along with useful PV‑specific accessories such as leads with MC4 and MC3 solar connectors. Both kits also come with a zippered pouch for storing the instruments and leads.

What's in the Box

• PVM210 irradiance meter

• Batteries

• Pouch

• Calibration certificate

Questions and Answers

What role does the PVM210 play before and after installing solar panels?

Initially, the PVM210 can be used to help select the most suitable location for installing solar panels. Once the installation is complete, it is used to verify the stated short‑circuit current, marked on each panel, in conjunction with a suitable multimeter or clamp meter.

When should you use a PVM210 Solar Irradiance Meter?

You’ll need the PVM210 when performing system verification in the field. It measures the brightness of the sunlight, which directly affects how well the system is performing.

How difficult is it to use the PVM210?

It’s not difficult at all. The PVM210 is simple to use on the jobsite every day. It fits in your pocket and only requires two AAA batteries, which provide approximately 50 hours of operation.
