Hydrogen Gas Detector Kit includes HGD-5000 (Hydrogen Gas Detector), EE-TEST-H-17L-KIT (Bump Test Kit), and VS-12-110VAC (12in 110VAC Exhaust Fan)

The HGD-5000 Hydrogen Gas Detector from Eagle Eye Power Solutions offers superior safety with a 10-year lifespan—double that of its predecessor, the HGD-2000. Designed for critical environments like battery rooms and substations, this advanced detector provides real-time monitoring and seamless integration into your existing safety systems, ensuring protection from hydrogen gas buildup. Trust the HGD-5000 to enhance your facility's safety and deliver long-lasting, reliable performance.

The HGD-5000-ST package includes one each:

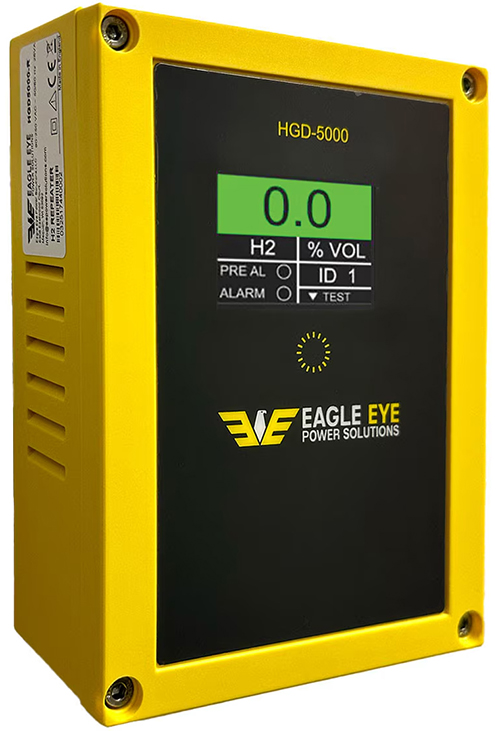

HGD-5000 Hydrogen Gas Detector

• Replaceable sensor with a long life

• 110AC, 24V AC, 18-60VDC power supply

• Internal relays for fan/alarm activation x2

• Analog outputs x2

• Output to external strobe

• 4-sec alarm delay to prevent false activation

• Supplied calibrated

The HGD-5000 H₂ Hydrogen Gas Detector is a state-of-the-art product designed to accurately and efficiently monitor hydrogen gas buildup in storage rooms and facilities that house batteries. It is actively specified by enclosure house manufacturers, substations, and engineering firms around the globe.

The HGD-5000 Hydrogen Gas Detector will monitor hydrogen gas buildup in storage rooms and facilities that house batteries. The detector provides terminal block connections for single-phase 110 AC, 24VAC or 18-60VDC power. Detected Hydrogen levels are displayed in % Vol and traffic light indication – Green (Normal) Yellow (Warning) Alarm (Red). The control relays are used to switch an exhaust fan and warning alarms, the detector also provides analog outputs that can be connected directly to the fan speed controller to regulate the fan speed. If the concentration of hydrogen gas detected reaches 1% Vol the screen will display yellow, and the warning relay will close activating the ventilation fan. If the concentration reaches 2% the screen will display red, and the alarm relay and an 80 dB internal warning will sound.

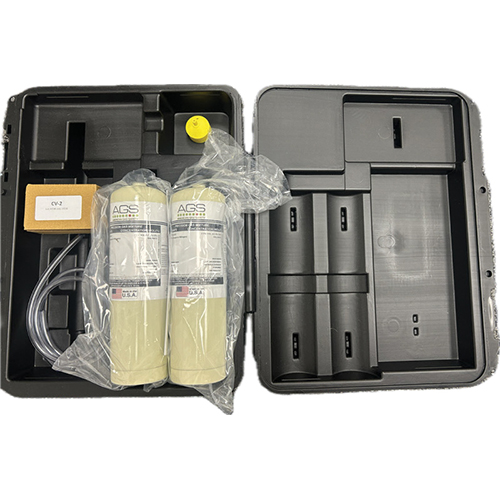

EE-TEST-H-17L-KIT Bump Testing Kit

The EE-TEST-H-17L-KIT is a bump testing kit that provides all of the components necessary to perform multiple “bump tests” on installed HGD detectors. The kit is provided with two canisters of H₂ gas that may be stored away and re-used for future bump tests. In addition to the canisters, the kit contains all of the necessary accessories to utilize the canisters.

The canisters require a regulator, vinyl tubing, and an applicator cone to place over the H₂ sensor within the unit. The kit comes with one of each of these accessories, that may be utilized on either one of the two canisters provided.

Kit Includes

• H2 2.5% V/V Cannisters x2

• Regulator Attachment x1

• Piece of Vinyl Tubing x1

• Applicator Cone Fitting HGD-5000 H2 Sensor x1

• Hard Cover Case for Storage x1

• Bump Testing Instruction Pamphlet x1

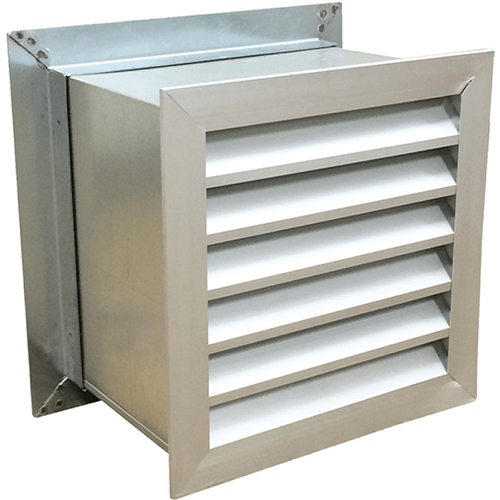

VS-12-110VAC 12in Battery Exhaust Fan

• 1050 CFM wall mounted fan

• Motorized Mechanical Louvers

• Designed for use with explosive or toxic gas detectors, including the Eagle Eye Power Solutions HGD-Series

• Simple installation with sliding collar to fit different wall thicknesses

• Long operating life

• 20-gauge galvanized steel

• Insurance premium reduction may be realized

The VS-12-110VAC Battery Exhaust Fan is a high-capacity 1050 CFM forced-air ventilation solution designed for battery charging rooms, industrial battery storage areas, and other environments where motive power or stationary batteries are in use. It provides essential ventilation in confined spaces where hydrogen gas, flammable vapors, or toxic gases may accumulate.

Engineered for optimal safety and efficiency, the VS-12-110VAC is designed to work in tandem with the Eagle Eye Power Solutions HGD-5000 hydrogen gas detector and repeater. Together, they create a complete battery room ventilation and gas detection system—ideal for remote facilities, off-grid locations, and sites that require a low-cost, easy-to-install hydrogen ventilation solution.

The Eagle Eye HGD-5000-ST Kit is an all-in-one hydrogen detection and safety solution designed for critical environments such as battery rooms and substations. The kit combines the trusted HGD-5000 detector, a bump test kit for routine performance verification, and a dedicated ventilation fan for rapid response to elevated hydrogen levels.

Key benefits include:

• Reliable Monitoring: Continuous detection with clear warning and alarm thresholds.

• System Integration: Relay and analog outputs for seamless connection to alarms, fans, and building management systems.

• Low Maintenance: Pre-calibrated, long-life sensor with a 10-year design cycle.

• Built-In Safety: False-alarm delay, visual and audible alerts, and compliance-ready design.

With its focus on safety, dependability, and ease of integration, the HGD-5000-ST Kit provides organizations with a professional-grade solution to safeguard personnel, equipment, and facilities from hydrogen-related risks.

In The Box

• Detector: HGD-5000 Hydrogen Gas Detector (pre-calibrated, with built-in alert and output features).

• Bump Test Kit: EE-TEST-H-17L includes 2 hydrogen gas canisters, 1 regulator, vinyl tubing, and applicator cone all in a hard cover case.

• Ventilation: VS-12-110VAC exhaust fan.

• Documentation: Product Datasheets, Hydrogen, Nitrogen and Oxygen mixtures Safety Datasheets (SDS), and User Manuals.
